2024 New Arrival VOC PM2.5 CO2 Ventilation Controller

Model Number: GM900

Power Supply: AC110-240V, 50/60Hz

Product name:Fresh air ventilation system controller

Built in sensors:CO2+VOC+PM2.5+Temperature+Humidity

WIFI function:Tuya

Mounting method:Wall mounting

Customized functions design:Support

Suitable for fans:AC/EC/DC



Collect
Product Description

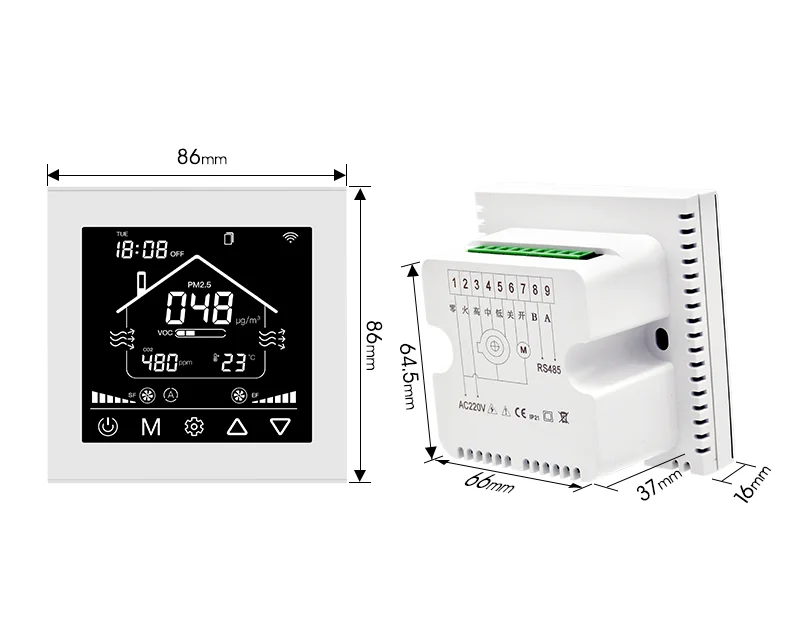

* Dimension:
86 × 86 mm

* Warm-up time:
1 minute
* Fixing hole distance:
60mm (standard)

* Response time:
≤ 10 seconds
* Wiring terminal:
 Max 2.5  mm2 wire

 * Recovery time:
≤ 30 seconds
* Rated voltage:
AC110-240V, 50/60Hz

 * Operating temperature:
-10℃--- +50℃
* Standby Power:
≤ 3.0W

 * Operating humidity:
 5％RH——90％RH
* Control power:
≤ 200W

 * Storage temperature:
-10℃--- +60℃
* Suitable for fans:
AC/EC/DC

 * Storage humidity:
≤ 60％RH
* Temperature display range:
 0℃ —— 50℃

 * Life:
≥ 5 years
* PM2.5 display range:
1ug/m3——999ug/m3

* CO2 display range:
 350 -- 1999 ppm


Wiring Diagram
