2024 New Arrival VOC PM2.5 CO2 Controller

Model Number: GM7-Pro

Power Supply: AC110-240V, 50/60Hz

Product name:Fresh air ventilation system controller

Built in sensors:CO2+VOC+PM2.5+Temperature+Humidity

Shell color:White & black

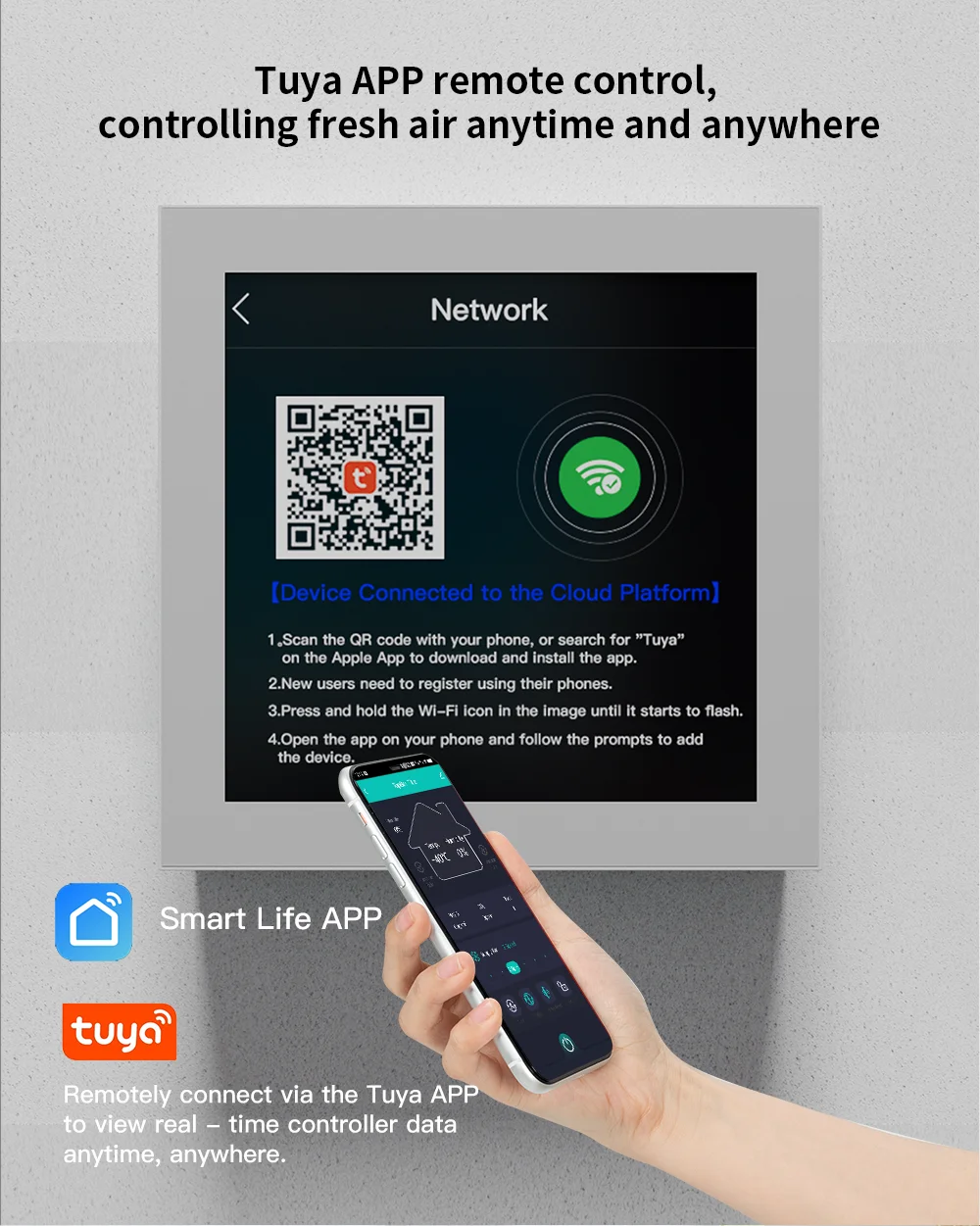

WIFI function:Tuya

Mounting method:Wall mounting

Customized functions design:Support

Suitable for fans:AC/EC/DC



Collect
Product Description


* Dimension:
115 × 185 mm

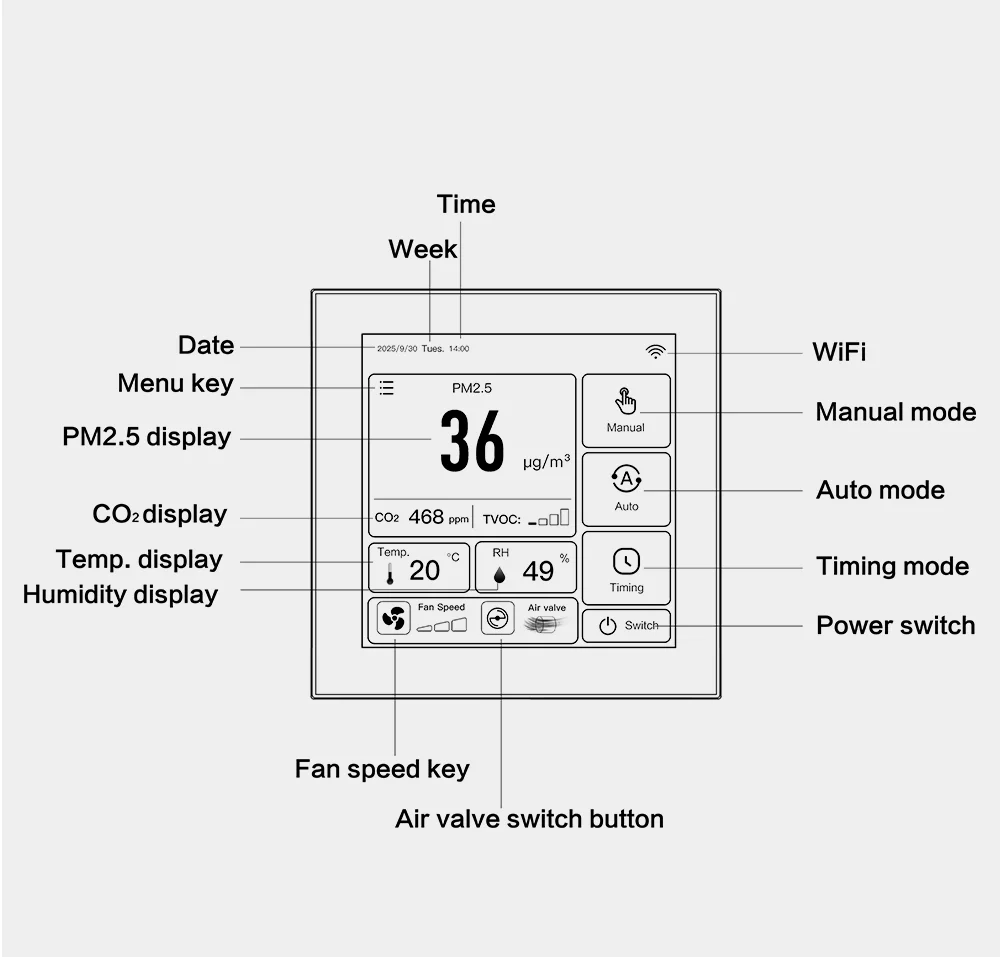

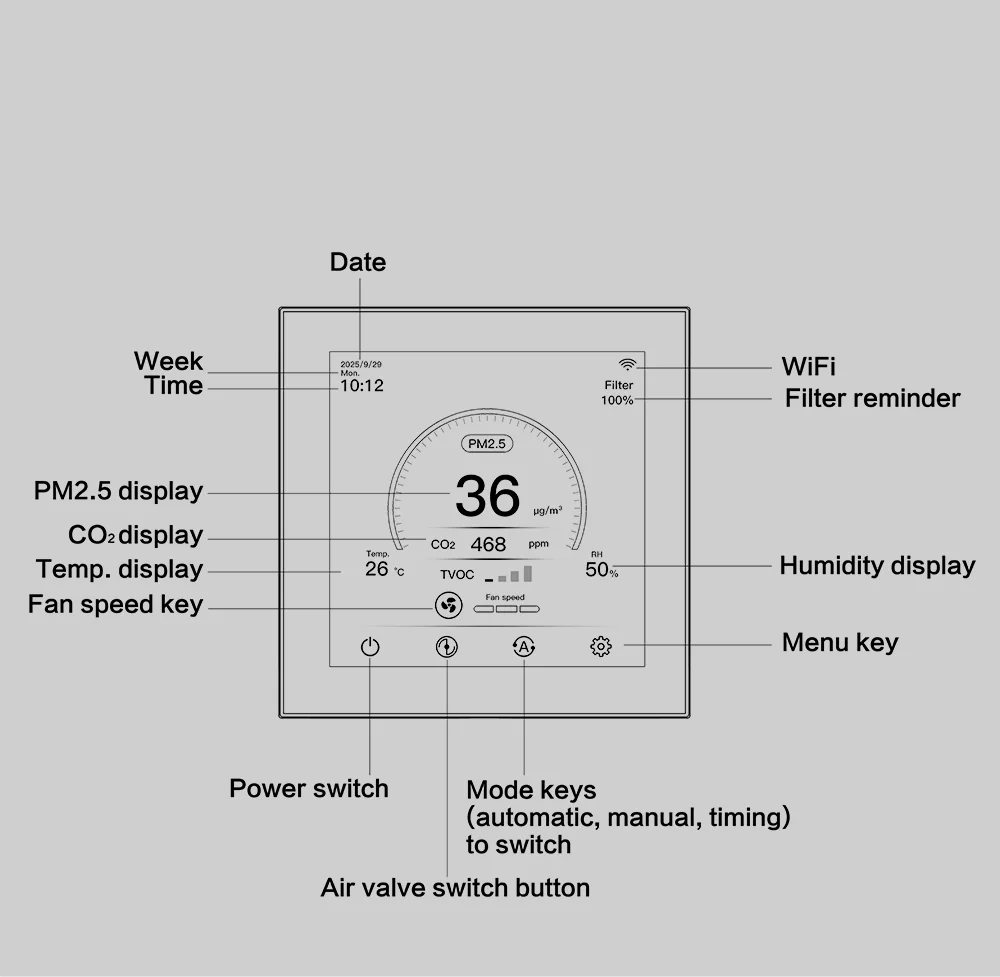

* Display interface:
7 inch, 1024 x 600
* Warm-up time:
2 minutes

* Response time:
≤ 10 seconds
* Wiring terminal:
 Max 2.5  mm2 wire

 * Recovery time:
≤ 30 seconds
* Rated voltage:
AC110-240V, 50/60Hz

 * Operating temperature:
-10℃--- +50℃
* Standby Power:
≤ 3.0W

 * Operating humidity:
 5％RH——90％RH
* Control power:
≤ 200W

 * Storage temperature:
-10℃--- +60℃
* Suitable for fans:
AC/EC/DC

* PM2.5 display range:
 0ug/m3——999ug/m3
* Temperature display range:
 0℃ —— 99℃

 * Humidity display range:
0% —— 99%
* Fixing hole distance:
60mm(standard)

* Recognition rate of quiet      environment
> 90%


Wiring Diagram
Application
Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and kids, Storage & Closet, Wine Cellar, Entry, Hall, Home Bar, Staircase, Basement, Garage & Shed, Gym, Laundry


Design Style
Contemporary, Modern, Minimalist, Industrial, Mediterranean, EUROPEAN, Asian, Eclectic, Tropical, Chinese, French


Place of Origin
BEIJING, China


Brand Name
OEM or neutral (no brand)


Type
Ventilation


Product name
Fresh air ventilator controller


Built in sensors
VOC+PM2.5+CO2+Temperature+Humidity


Shell color
White


Screen size
7 inch


Resolution
1024*600


Mounting methods
Wall mounted


WIFI function
Optional


Suitable for fans
AC/EC/DC fan motors


Customized functions design
Support
