Falcon-U USA Thermostat

Model Number: Falcon-U-TY

Power supply: 24VAC，50/60 hz

Lorawan US 915 / BACnet IP & MSTP / MQTT / Modbus TCP & IP

Up to 3H/2C, Gas / Electric / Heat Pump / Fossil Fuel /Conventional system

Multi Language: English, Deutsch, Czech, Espanol, French,

German, Italiano, Polish, Russian, Swedish, Croatian, Svenska etc

C/F Temperature Display

Set Temp. Range: 5~45℃ (software selectable)

Schdule: 5+2 Day, 7 Day And 24 Hour(Max 6 Timers)

Temperature Calibration

Collect

Product Description

Features:

Model No	Falcon-U
Power Supply	24VAC，50/60 hz
Purpose Of Control	Up to 3H/2C, Gas / Electric / Heat Pump / Fossil Fuel /Conventional system
Relay Rating	24VAC @1 Amp
Display	320x480 pixels TFT, Capacitive touch screen
Temperature Format	C/F
Standby Consumption	≤0.5 W
Temperature Range	5~35°C
Temperature Set Range	5~45°C
Sensor	Bulit In / Remote / Floor Sensor
Programmable	None / 5+2 / 7 Days / 24 Hours Up to different 4- or 6-event program
LoraWAN	915mHZ
Sensor	NTC10K
Temperature Resolution	0.1°C
Temperature Control	Accuracy: 0.5°C
Operating Temperature / Humidity	Temp.: 1° c- 85° C Humidity: 5~95%
Color Option	White / Black & Sliver / Black
Language	Multi Language ( 9 )
Approval	CE / UKCA / ROHS Standard
Dimensions (W/H/D)	96 * 86 * 13.8 (mm)
Installation	Surface Mounting
Housing Material	PC+ABS
Enclosure Rating	IP 20

HVAC SYSTEM COMPATIBILITY

Equipment	Supported
Gas/Oil/Electric heating (Up to two stages)	YES
Standard electric cooling (Up to two stages)	YES
Traditional AC (up to two stages)	YES
Heat pump with auxiliary heat (Up to three stages)	YES
Dual fuel systems	YES
Boilers	YES
1 remote sensor(10K resistive temperature) 1 dry contact for Occupy input	YES

LoRaWAN

Status data that sends out from thermostat to gateway
Byte ID	Data	data
1	RoomTemp_Hi	room temperature High byte
2	RoomTemp_Lo	room temperature Low byte
3	SetTemp_Hi	Set tempearture High byte
4	SetTemp_Lo	Set tempearture Low byte
5	MaxSetTempLimit	maximum set temperature
6	MinSetTempLimit	minimum set temperature
7	Humidity	0-100
8	Mode	0:OFF,1:ON
9	SysRunningMode	MODE_HEATING: 0, MODE_COOLING:1, MODE_VATILATE:2, MODE_DEHUMIDITY:3, MODE_AUTO:4
10	FanRunningMode	FAN_HIGH: 0, FAN_MED:1, FAN_LOW:2, FAN_AUTO:3
11	valve status	0:OFF,1:ON

Command data that thermostat receives from gateway
Byte ID	Data	data
1	SetTemp_Hi	Set tempearture High byte
2	SetTemp_Lo	Set tempearture Low byte
3	Mode	0:OFF,1:ON
4	SysRunningMode	MODE_HEATING: 0, MODE_COOLING:1, MODE_VATILATE:2, MODE_DEHUMIDITY:3, MODE_AUTO:4
5	FanRunningMode	FAN_HIGH: 0, FAN_MED:1, FAN_LOW:2, FAN_AUTO:3

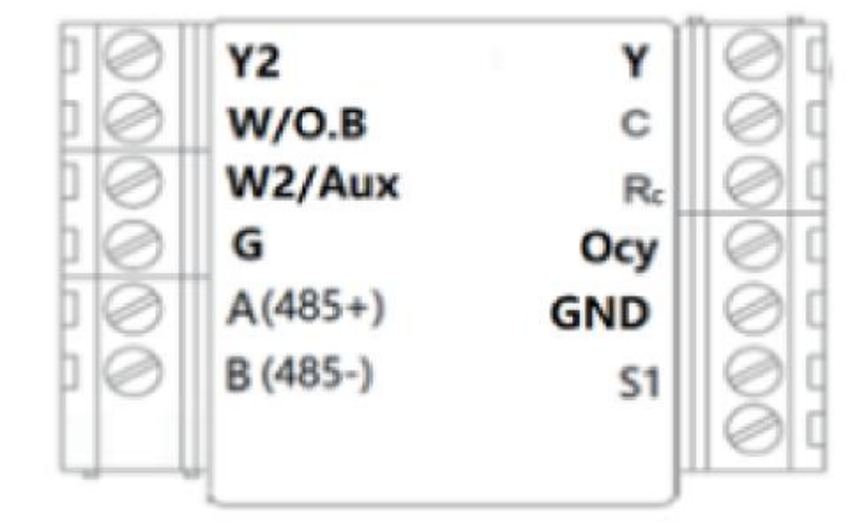

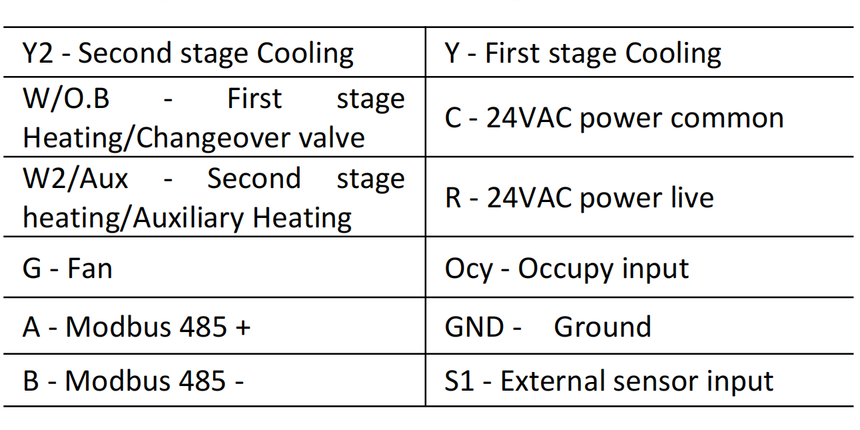

TERMINAL DISCRIPTION

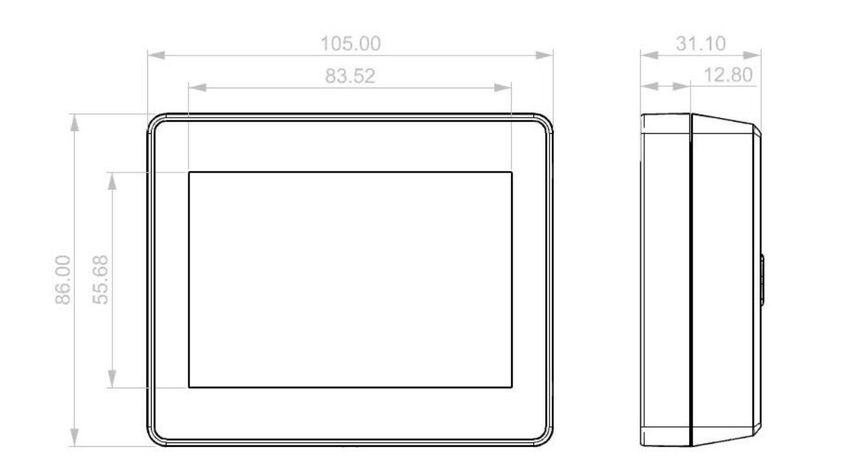

OUTLINE DIMENSION
