MC6-HA Wet UFH Thermostat

Model Number: MC6-HA-TY

Power supply: 95-260vac, 50/60hz

Boiler / Valve / Underfloor Water / electric heating system

Multi Language: English, Deutsch, Czech, Espanol, French,

German, Italiano, Polish, Russian, Swedish, Croatian, Svenska etc

Multi Sensor: Inner / Remote / Floor Sensors

C/F Temperature Display

Set Temp. Range: 5~45℃ (software selectable)

Schdule: 5+2 Day, 7 Day And 24 Hour(Max 6 Timers)

Temperature Calibration

Collect

Product Description

Features:

Model No	MC6-HA
Power Supply	95~230Vac / 24Vac, 50/60Hz
Purpose Of Control	Boiler/Valve/Underfloor Water/electric heating system
Relay Rating	230VAC @5 Amp per relay; @16 Amp relay in electric heating model
Display	320x480 pixels TFT, Capacitive touch screen
Temperature Format	C/F
Standby Consumption	≤0.5 W
Temperature Range	5~35°C
Temperature Set Range	5~45°C
Sensor	Bulit In / Remote / Floor Sensor
Programmable	None / 5+2 / 7 Days / 24 Hours Up to different 4- or 6-event program
Output	Volt free switch /Switch Live
Sensor	NTC10K
Temperature Resolution	0.1°C
Temperature Control	Accuracy: 0.5°C
Operating Temperature / Humidity	Temp.: 1° c- 85° C Humidity: 5~95%
Color Option	White / Black & Sliver / Black
Language	Multi Language ( 9 )
Approval	CE / UKCA / ROHS Standard

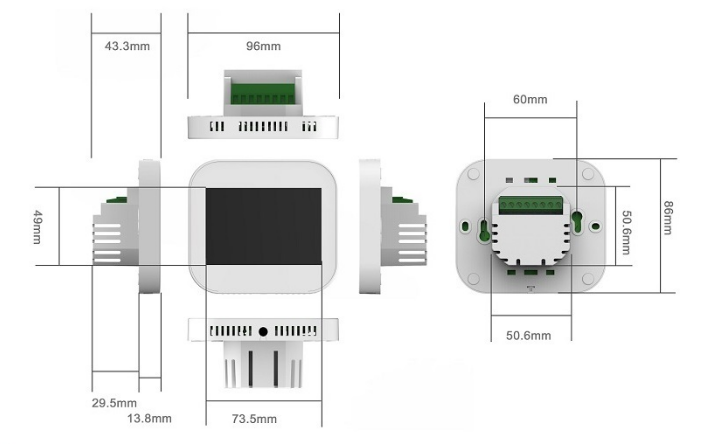

Dimensions (W/H/D)	96 * 86 * 13.8 (mm)
Installation	Flush/Surface Mounting
Housing Material	PC+ABS
Enclosure Rating	IP 20
