BACnet Fan Coil Unit Thermostat

Model Number: MC6-FCU-BACnet

Power supply: 24VAC / 95-260vac, 50/60hz

Tuya Fan Coil Unit Thermostat

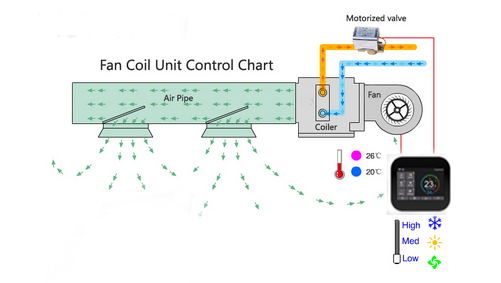

2 / 4 pipes HVAC system

3 speed or 0-10VDC fan control

On/Off relay or 0-10VDC valve control

Digit Input: Window / Occupy / Fire

Communicate: Modbus TCP /RTU / BACnet / MQTT / Lorawan

C/F Temperature Display

Set Temp. Range: 5~45℃ (software selectable)

Schdule: 5+2 Day, 7 Day And 24 Hour(Max 6 Timers)

Temperature Calibration

Collect

Product Description

Model No	MC6-FCU-BACnet
Power Supply	95~230Vac / 24Vac, 50 / 60Hz
Purpose Of Control	2 / 4 pipe
Relay Rating	230VAC @5 Amp maximum per relay
Digit input	Window / Occupy / Fire
Fan	3 Speed / 0-10V Fan
Valve	On/Off valve / 0-10V Valve
Heat/Cool	YES
Screen	320x480 pixels TFT, Capacitive touch screen
Key Card Function	Dry Contact
Communication	Modbus TCP / RTU
Temperature Format	C / F
Programmable	None / 5+2 / 7 Days / 24 Hours Up to different 4- or 6-event program
Setpoint Range	5~35°C
Temperature Resolution	0.1°C
Operating Temperature / Humidity	Temp.: 1° c- 85° C Humidity: 5~95%
Color	White / Black & Sliver / Black
Approval	CE / UKCA / ROHS Standard

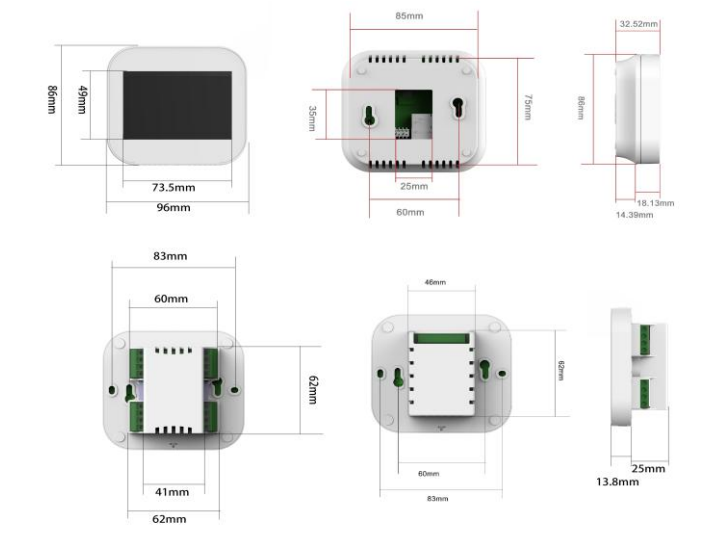

Installation	Flush / Surface Mounting
Housing Material	PC+ABS
IP Grade	IP 20

PRODUCT MODEL

Model	System	Fan	Valve	Digit Input	Modbus	BACnet
2FA	2 PIPE	3 Speed	3 WAYS	Windows / Occupy / Fire	TCP / RTU	YES
2FC	2 PIPE	3 Speed	0-10V	Windows / Occupy / Fire	TCP / RTU	YES
2FGC	2 PIPE	0-10V	0-10V	Windows / Occupy / Fire	TCP / RTU	YES
2FG	2 PIPE	0-10V	2 WAYS	Windows / Occupy / Fire	TCP / RTU	YES
2FB1	2 PIPE	220V FAN(0-100%)	2 WAYS COOL / Electric heating	Windows / Occupy / Fire	TCP / RTU	YES
4FDE	4 PIPE	3 Speed	2 WAYS	Windows / Occupy / Fire	TCP / RTU	YES
4FD	4 PIPE	3 Speed	0-10V	Windows / Occupy / Fire	TCP / RTU	YES
4FF	4 PIPE	3 Speed	2 WAYS	Windows / Occupy / Fire	TCP / RTU	YES
4FI	4 PIPE	0-10V	2 WAYS	Windows / Occupy / Fire	TCP / RTU	YES
