Home >> Product >>FCU Thermostat >>Digit Input FCU >> 2/4 pipe FCU Thermostat
Product Detail

2/4 pipe FCU Thermostat

Model Number:M81-FCU

Power Supply: 230VAC± 10%  50/60Hz

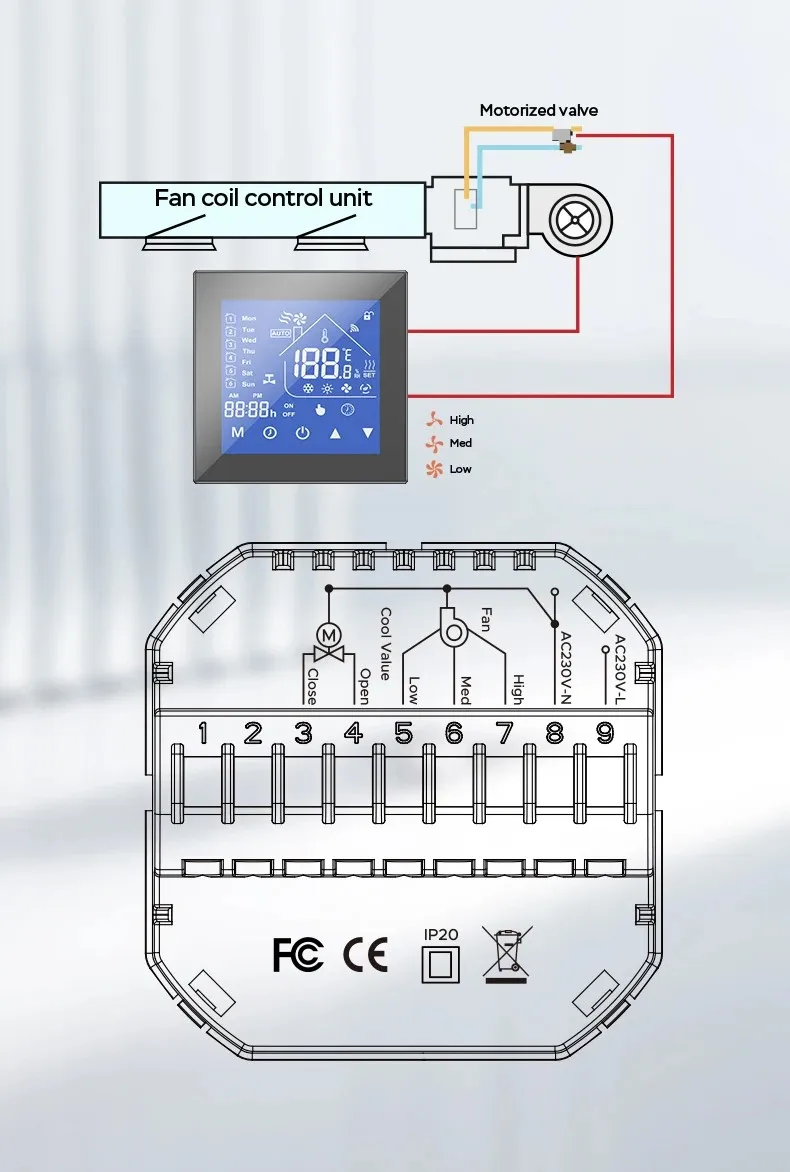

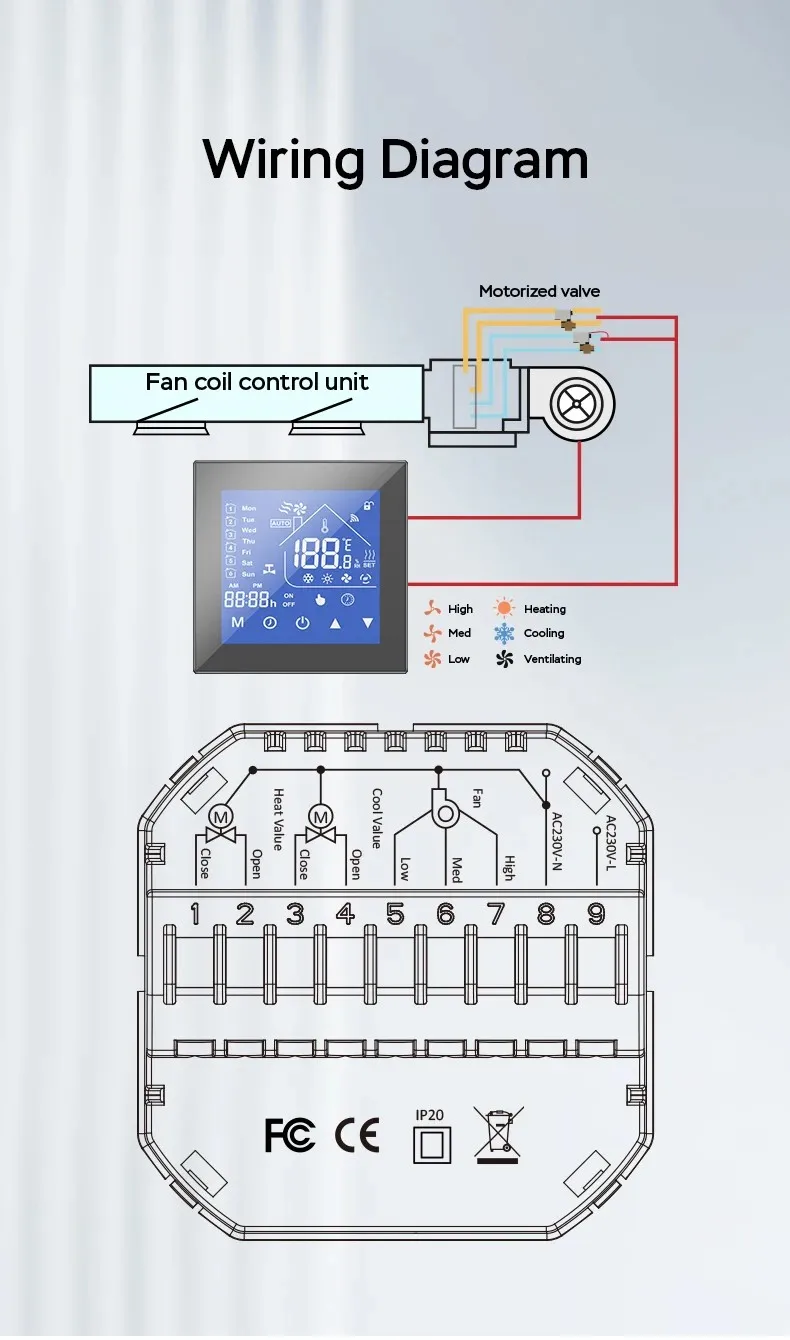

2 pipes and 4 pipes Fan Coil AC System

Consumption: <1.5W

Load Current: <5A

Accuracy: ±1ºC

Set-point Range: 5ºC~35ºC

Timing Error: <1%



Collect
Product Description


Adjustable comfort mode,economy mode,party mod.holiday mode and program mode control

5+1+1 weekly programmable

Extemal and intemal sensor

Clock and date display

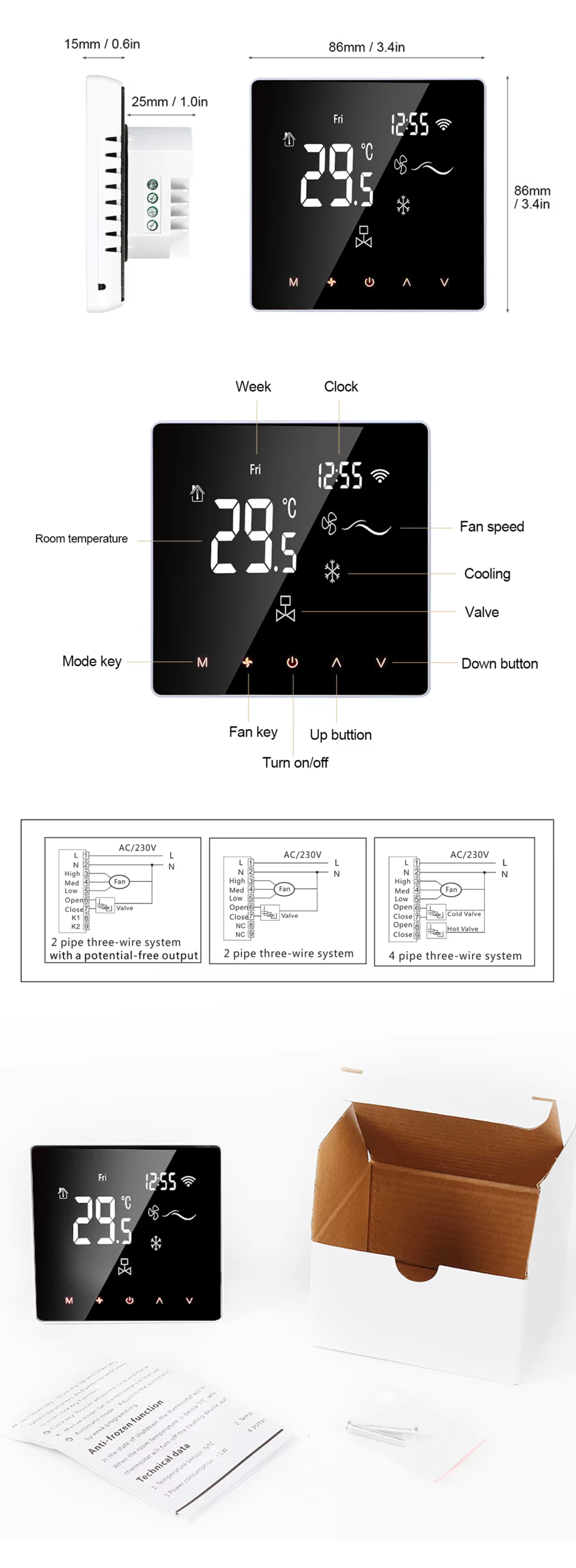

Dimension(H/W/D): 86/86/40mm





Power Supply: 230VAC± 10%  50/60Hz

2 pipes and 4 pipes Fan Coil AC System

Consumption: <1.5W

Load Current: <5A

Accuracy: ±1ºC

Set-point Range: 5ºC~35ºC

Timing Error: <1%

l 3 Speed Fan- High, Med, Low / 0-10vdc Fan(Option)

l ON/OFF Valve / 0-10vdc Valve(Option)

l 0-10Vdc Fan and 0-10Vdc Valve(Option)

WiFi(Option): IEEE 802.11 b/g/n - 2.4ghz

Tuya is available.

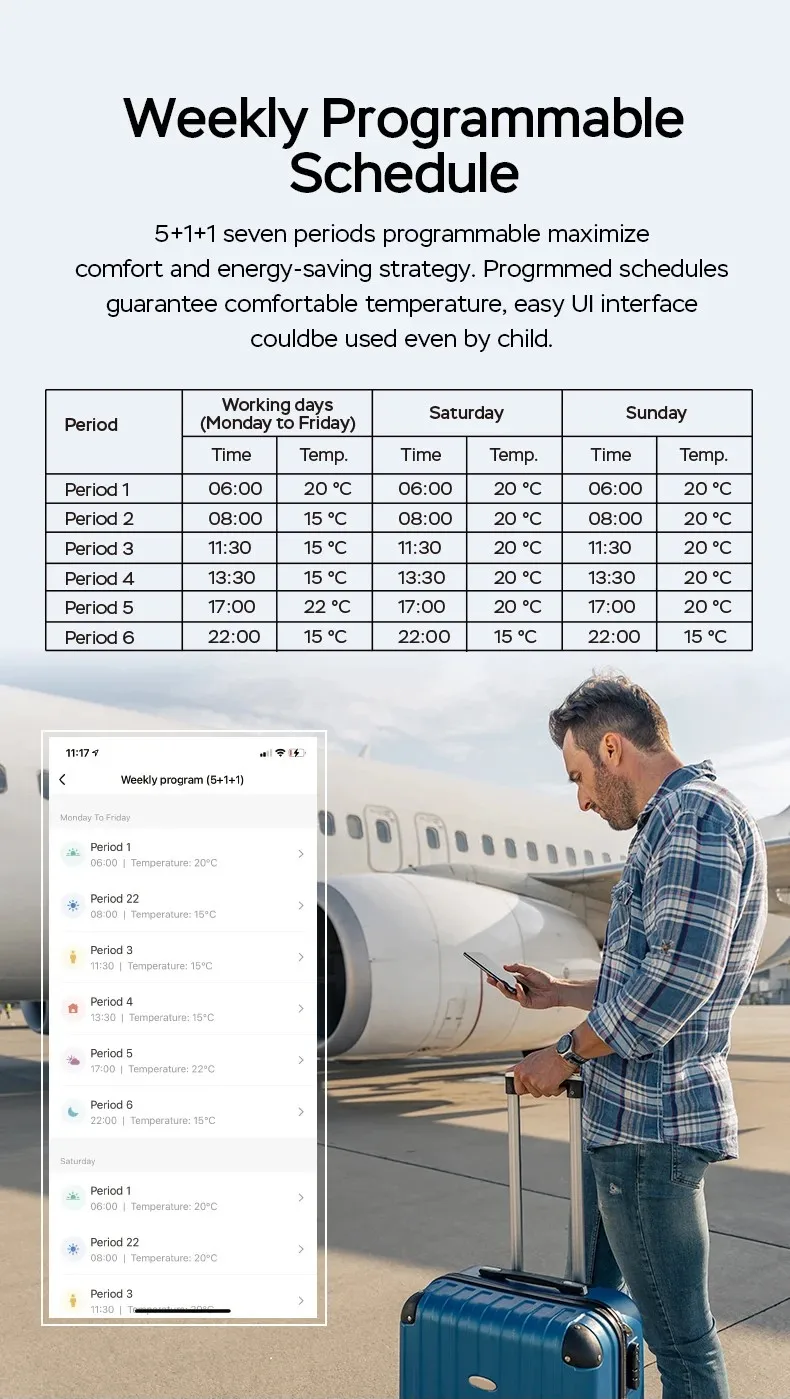

Weekly programmable

Voice control-Alexa and Google Assistant

Dimensions (W/H/D): 88.3 * 87 * 13.8  (mm)

Weight : ≤200
