IAQ60 CO2 PM2.5 VOC Air pressure Monitor

Model Number: CH60

Power Supply: 110-230VAC，24VAC(Option);

CO2: 0-5000 ppm (±30ppm + 3%MV)

Temperature:-10ºC – 70ºC,±(0.5 C 25 C)

Humidity: 0 – 100%, ±3 %

VOC: 0-60.000 ppb

Particulate Matter (PM1.5, PM2.5, PM4, PM10): 4 KB0-100 μg/m3 (±10 μg/m3), 100 – 1.000 (±10 %)

Pressure: 50 to 115 kPa, ±1 kPa accuracy

Collect

Product Description

PRODUCT DESCRIPTION:

The IAQ60/61 will monitor up to 6 parameters that include Particulate Matter (PM1, PM2.5, & PM10), Volatile Organic Compounds, Carbon Dioxide Humidity & Temperature and provide either a BACnet® or Modbus signal for connection to a building automation system. a full-colour capacitive touch screen LCD that’s user configurable, a configurable alarm relay output. , a configurable alarm 0-10vdc output, an input for temperature or alert, All this housed in a new modern, quick mount enclosure.

Features:

Model No	IAQ60
Power Supply	110-230VAC，24VAC(Option);
Sensor	CO2: 0-5000 ppm (±30ppm + 3%MV) Temperature:-10ºC – 70ºC,±(0.5 C 25 C) Humidity: 0 – 100%, ±3 % VOC: 0-60.000 ppb Particulate Matter (PM1.5, PM2.5, PM4, PM10): 4 KB0-100 μg/m3 (±10 μg/m3), 100 – 1.000 (±10 %) Pressure: 50 to 115 kPa, ±1 kPa accuracy
NDIR life time	10+ Years

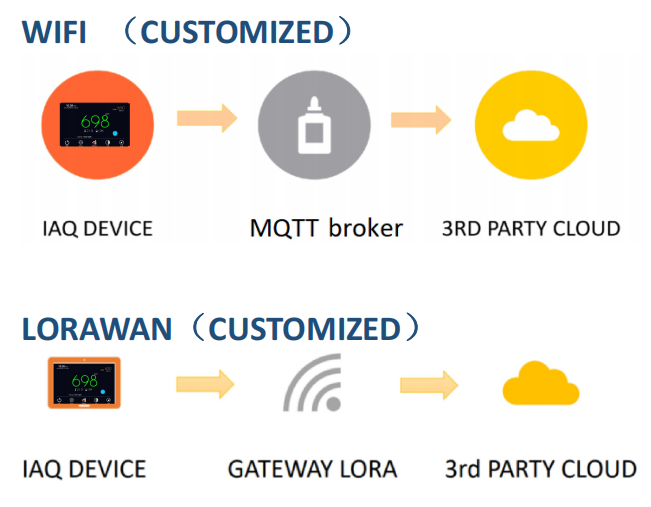

Data protocals	MQTT Device Configuration Using HTTP Download OTA Updates Via HTTP

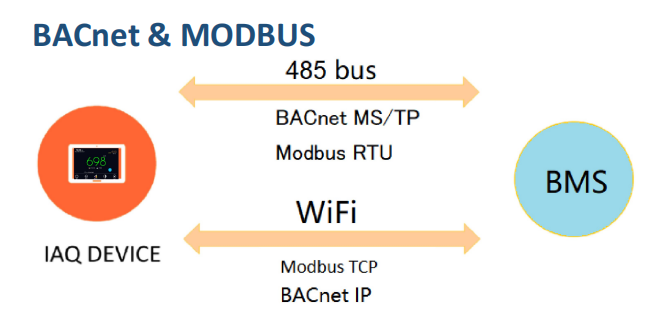

Communicate	WiFi -MQTT, modbus TCP LoRaWan(Option) BACnet MS/TP ,IP(Option) Modbus RTU/TCP(Option)
CO2 high, low alert message reminder	YES
USB data export( .txt)	YES
LoRaWAN	868mHz/923mHZ/915mHz
Color	White / Black & Sliver / Black
Approval	CE / UKCA / ROHS Standard
Installation	Flush / Surface Mounting
Housing Material	PC+ABS
